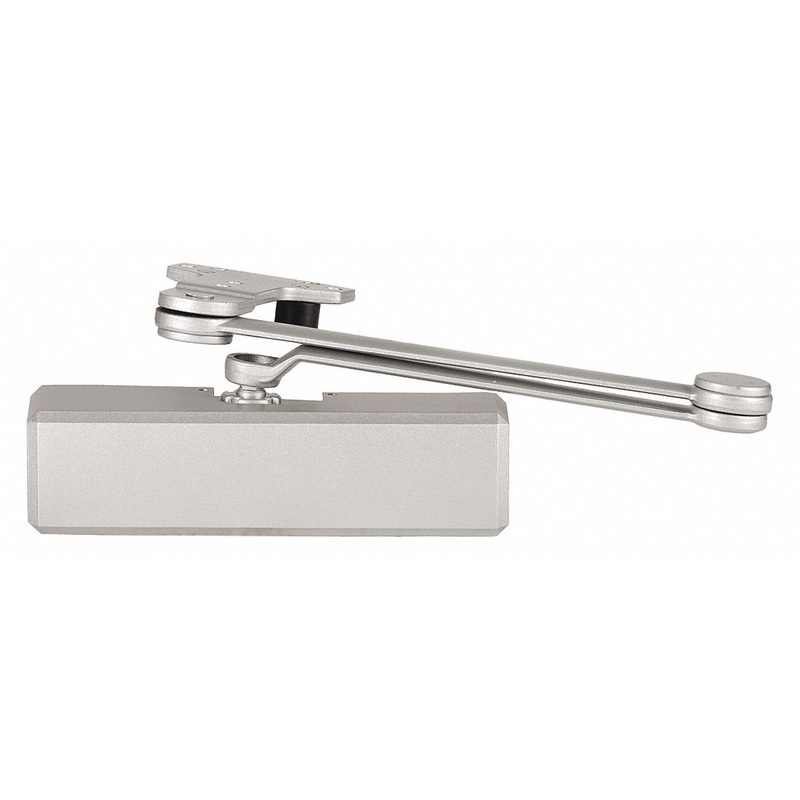

DORMAKABA Heavy Duty Door Closer
The DORMAKABA Door Closer is engineered for the discerning pros who need reliability and flexibility. Crafted from durable aluminum, this adjustable-mount closer offers straightforward installation and superior performance for both interior and exterior doors. Its heavy-duty construction and fire-rated design ensure safety and endurance, making it a top choice for high-traffic environments.
Key Features:
-
Adjustable Mounting: Configurable as standard, top frame, or parallel to suit various door setups.
-
Heavy Duty Performance: Grade 1 rating ensures durability and reliable performance for high-use areas.
-
Fire Rated Design: UL10C certified with a 3-hour fire rating for enhanced safety.
-
Hydraulic Operation: Offers smooth and controlled closing with adjustable spring tension.
-
Includes Complete Hardware: Comes with all necessary mounting screws for easy installation.
Specifications Table:
|
| Specification |
Details |
| Manufacturer Part Number |
QDC313F689 |
| Brand |
DORMAKABA |
| Closer Mounting Type |
Adjustable |
| Closer Series |
QDC300 |
| Closer Stop Type |
Standard |
| Closer Type |
Non-Hold Open |
| Color |
Gray |
| Display Qty |
1 |
| Display Sell UOM |
EA |
| Max Door Opening Angle |
180 |
| Finish |
Aluminum |
| Fire Rating |
3 hr |
| Housing Depth |
3-1/16 in |
| Housing Height |
2-5/8 in |
| Energy Source |
Hydraulic |
| Includes |
Mounting Screws |
| Includes Hardware |
Hardware Included |
| Door Width Campatibility |
54 in |
| Location Use |
Interior/Exterior |
| Standards |
UL and cUL Listed |
| UL Fire Rating |
UL10C |
| Spring Type |
Adjustable |
| Height Between Mounting Holes |
1-1/4 in |
| Spring Size – Minimum |
1 |
| Material |
Aluminum |
| Exterior Door Width – Maximum |
54 in |
| Product Type |
Door Closer |
| Projection |
2-1/4 in |
| Spring Size |
6 |
| Hand Orientation |
Non-Handed |
| Housing Length |
9-13/16 in |
| Operation Style |
Manual |
| Performance Duty Rating |
1 |
| Sub-brand |
Dormakaba |
| Length Between Mounting Holes |
9-1/16 in |
| Ligature Resistance |
Not Ligature-Resistant |
| ADA Compliant |
Yes |
| Performance Rating |
Grade 1 – Heavy Duty |
| Finish C |
Aluminum Painted ; Aluminum ; Gray |
Frequently Asked Questions (FAQ):
Q: Can this door closer be used on both interior and exterior doors?
A: Yes, the DORMAKABA Door Closer is designed for use on both interior and exterior doors, making it quite versatile.
Q: Is the door closer ADA compliant?
A: Yes, this door closer meets ADA compliance, ensuring accessibility for all users.
Q: What is the maximum door width this closer can handle?
A: The closer is compatible with doors up to 54 inches wide.
Q: Does this product include mounting hardware?
A: Yes, all necessary mounting screws are included with the door closer.
Q: What is the maximum opening angle for this door closer?
A: The door closer allows for a maximum opening angle of 180 degrees.
Elevate Your Entrances with Seamless Precision
Incorporate the DORMAKABA Door Closer to blend functionality with the grace of seamless design. Its sleek aluminum structure not only complements modern architectural frameworks but also ensures unobtrusive operation. Whether in a bustling office setting or a serene private home, this door closer offers versatility and subtlety, styling doors with an intuitive elegance. Truly, it’s a pivotal element for those who appreciate meticulous details and lasting quality in luxurious spaces.
Upgrade with the DORMAKABA Door Closer and enjoy reliable, adjustable performance in every doorway.
